ICD & ICS

Ordering individual chassis drawings and chassis specifications

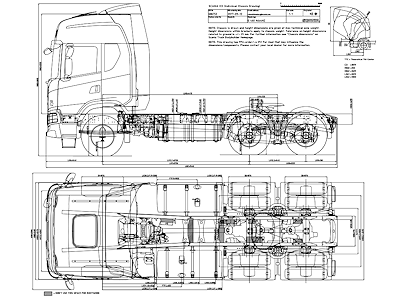

Using the vehicle’s chassis serial number or factory order number, an individual chassis drawing (ICD), an individual chassis specification (ICS) and chassis and  bodywork dimensions (BEP) can be ordered for a specific chassis.

The documents will be sent to you by e-mail. The e-mail message will contain the following:

  • ICD in DXF and PDF format
  • ICS in PDF format

Tools for viewing 2D drawings can be downloaded from the following websites:

DWG Viewers
eDrawings Viewer
Order Drawing

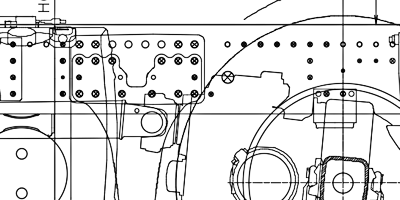

Frame holes on the ICD

The frame holes on the ICD can have two different appearances:

  • Empty holes, meaning that the holes are available.
  • Holes with crosses mean that there is a screw or a rivet in hole.
