Acil Durdurma

Seçim

Açıklama

Bu işlevle motor sıcaklığının çok yüksek veya yağ basıncının çok düşük olması durumunda motor otomatik olarak kapatılır.

Acil durdurma düğmesi, bireysel yaralanma riski olduğunda motoru kapatabilmeyi sağlar.

Şu tip uygulamalar için uygundur:

  • Kereste kamyonları
  • Tankerler
  • Vinçli kamyonlar

Fonksiyon

Acil durdurma düğmesinin etkinleşmesi durumunda birinci operatör [&] EG PTO’nun etkinleşip etkinleşmediğini algılar. Bu durumda motor kapatılır.

Motor ayrıca aşağıdaki işlevlerden birinin EG PTO ile birlikte etkinleşmesi durumunda da kapatılır:

  • Düşük yağ basıncı
  • Yüksek soğutma suyu sıcaklığı

EG PTO’su bağlı değilse acil durdurma motoru etkilemez.

Note!

The Emergency Engine Shutdown -function might not work if there is for example a break in communication between the bodywork and the Bodywork Communication Interface (BCI). It is therefore advisable to use primarily some other method to stop the bodywork functions in case of an emergency.

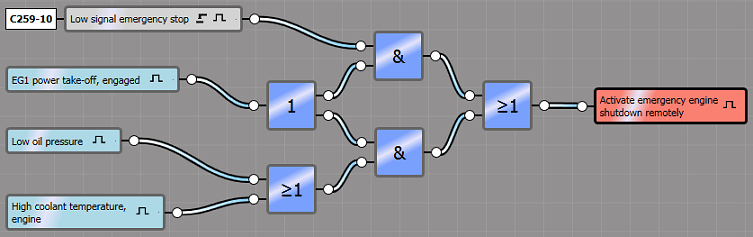

Motorun durdurulması için mantık şemasını indirin
